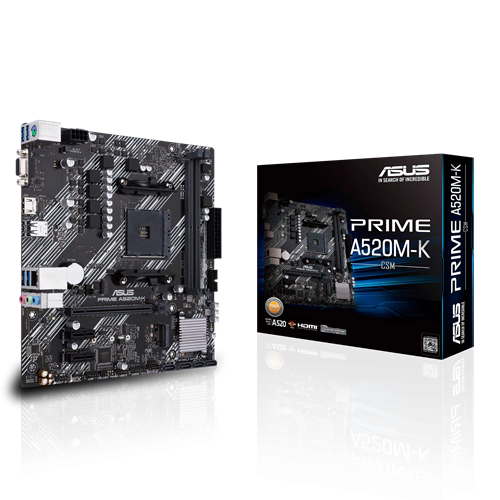

Placa madre ASUS PRIME A520M-K micro ATX M.2 HDMI VGA USB-3.0
Socket AMD AM4: Listo para procesadores de escritorio Ryzen™ 5000 Series / 4000 G-Series / 3000 Series.
Enfriamiento completo: Disipador de Chipset y Fan Xpert.
Conectividad ultrarrápida: Compatibilidad con M.2, Ethernet de 1 Gb, USB 3.2 Gen 2 tipo A.
5X Protection III: Múltiples protecciones de hardware para la protección integral del sistema.
Especificaciones
Model
PRIME A520M-K
CPU
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors *,* Refer to www.asus.com for CPU support list.,* Refer to www.asus.com for CPU support list
Chipset
AMD A520
Memoria
2 x DIMM, Max. 64GB, DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *,* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.
Gráficos
1 x HDMI 2.1(4K@60HZ)
Slots de Expansión
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors,AMD A520 Chipset,2 x PCIe 3.0 x1,1 x PCIe 3.0 x16 (x16 mode)
Almacenamiento
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors : ,Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports,AMD A520 Chipset : ,1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support,4 x SATA 6Gb/s port(s),,Support Raid 0, 1, 10
LAN
Realtek RTL8111H 1Gb Ethernet,ASUS LANGuard
Audio
Realtek ALC887/8977.1 Surround Sound High Definition Audio CODEC *,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- Audio Shielding,- Dedicated audio PCB layers,Audio Feature :,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Puertos USB
4 x USB 2.0 port(s)(4 x Type-A),Front USB Port ( Total 6 ),Rear USB Port ( Total 6 ),2 x USB 3.2 Gen 1 port(s)(2 x Type-A),4 x USB 3.2 Gen 1 port(s)(4 x Type-A),2 x USB 2.0 port(s)(2 x Type-A)
Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance and Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
Puertos I/O Traseros
4 x USB 3.2 Gen 1 (blue) Type-A,1 x D-Sub,2 x USB 2.0,3 x Audio jack(s),1 x PS/2 keyboard/mouse combo port(s),1 x HDMI,1 x LAN (RJ45) port(s)
Internal I/O
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),1 x Chassis Fan connector(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x 8-pin EATX 12V Power connectors,1 x System panel connector,1 x Speaker connector,1 x CPU Fan connector(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x SPI TPM header,4 x SATA 6Gb/s connector(s),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s),1 x COM port header
Accessorios
1 x M.2 SSD screw package(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x Supporting DVD
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Capacidad de gestión
WOL by PME, PXE
Sistema Operativo
Windows® 10 64-bit
Factor de forma
8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ),mATX Form Factor
